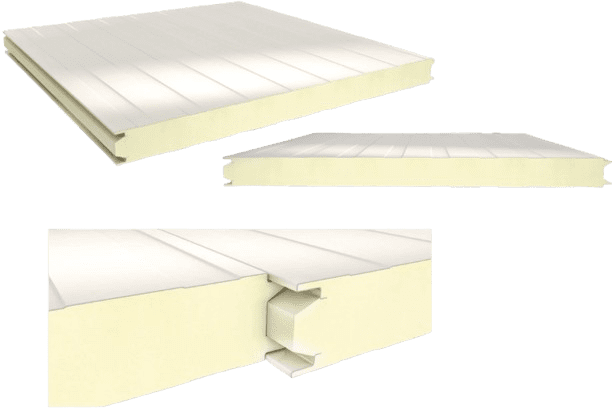

Primary Product: Cold Storage PUF Panels
Cold storage construction is where the consequences of insulated panel specification errors are most financially visible. A cold storage facility with under-specified panels runs refrigeration at overcapacity — constantly, expensively, and without the operator necessarily understanding why. At coldstoragepufpanels.in, we supply cold storage panel manufacturers' highest-performance product — Mount Roofing & Structures PUF panels — in the thickness specifications required for every cold chain temperature zone from ambient-plus to deep freeze at -40°C.
Mount's cold storage PUF panels are manufactured to the same CPL standard as their industrial roofing panels — with the same 38–42 kg/m³ core density control, the same ±1mm thickness tolerance, and the same batch documentation. For cold storage applications, the documentation is not just useful — it is essential. A 150mm panel specified for -18°C frozen storage that is actually delivered at 140mm effective thickness (a common variation in batch-manufactured panels) is a panel that will not achieve target temperature without refrigeration overcapacity. Mount's ±1mm tolerance eliminates this margin of error. Cold storage panels for food industry applications are where this precision most directly translates into operational reliability.
coldstoragepufpanels.in supplies cold storage PUF panels with tongue-and-groove edge profiles, PU joint sealant protocols, vapour barrier specification, and anti-condensation heater provision guidance for sub-zero door frame details. The complete cold storage envelope — walls, ceiling, floor panels, and corner profiles — is available through this platform, with Mount's technical team providing temperature-to-thickness mapping for each temperature zone. Puf panels for cold storage at every thickness from 60mm to 200mm are stocked or schedulable through our Mount distributor relationship.
| Parameter | Specification |
|---|---|
| Core Material | Polyurethane Foam (PUF) |
| Cold Storage Thickness Range | 60mm to 200mm |
| Core Density | 38–42 kg/m³ (±1.5 kg/m³) |
| Thermal Conductivity | 0.022–0.024 W/m·K |
| U-Value at 100mm | ~0.22 W/m²K (for 0°C to +4°C chilled) |
| U-Value at 150mm | ~0.15 W/m²K (for -18°C frozen) |
| U-Value at 200mm | ~0.11 W/m²K (for -40°C deep freeze) |
| Operating Temperature Range | +18°C to -40°C |
| Edge Profile | Tongue-and-groove, PU-sealable |
| Vapour Barrier | Warm-face vapour barrier guidance included |
| Floor Panels | Load-bearing steel skin options available |
| Corner Profiles | Coved aluminium standard |
| Fire Resistance | EI 60 |
| Documentation | Density batch certs, U-value certs, sealing protocols |
Cold storage buyers have the most to lose from an underperforming PUF panel. The refrigeration overcapacity cost from a 15% thermal shortfall across a 5,000 sq metre cold store can run to tens of lakhs per year in electricity. Over a 10-year operating period, that is a cost that dwarfs the initial saving on panel price. We source exclusively from Mount because their manufacturing controls — CPL density tolerance at ±1.5 kg/m³ and thickness tolerance at ±1mm — make the thermal shortfall scenario impossible. Cold storage PUF panels from Mount, supplied through coldstoragepufpanels.in with full batch documentation, are the specification that cold chain investors and operators can rely on for the life of their facility.
coldstoragepufpanels.in supplies the full Mount range beyond cold storage panels. Available products include PUF and PIR Roof and Wall Panels for ambient facility construction, Rockwool Panels (EI 120), Solar PUF Panels for cold chain facility rooftop PV, Clean Room Panels to GMP and ISO 14644, Pre-Engineered Building structural systems, Polycarbonate Roofing Sheets, UPVC Roofing Sheets, and Self-Drilling Roofing Screws. Contact us with your cold storage temperature zone, floor area, and location for a complete panel thickness specification and project quotation.
Contact us today for a free quote on your cold storage panel requirements.
